Watersnake Stealth Bow Mount Motors
SKU:55319
- UP TO 65LB THRUST ON 12V: Plenty of power and only needs a single 12 volt battery.
- READY FOR SALTWATER: Tough composite shaft, sacrificial zinc anode, encapsulated driver module.
- WIRELESS HANDHELD REMOTE: Stay in control, anywhere on your boat.
- LiFePO4 BATTERY COMPATIBLE: Use a lightweight 12V LiFePO4 lithium battery up to 14.5V in use.
- UPGRADED MOUNTING BRACKET Easier to deploy and stow
- STRONGER AND FASTER TURNING BOX
- ANDERSON PLUGS FOR EASY CONNECTIONS
- EFFICIENT DIGITAL VARIABLE SPEED
- BUILT-IN VOLTAGE PROTECTION UP TO 14.5V: no circuit breaker needed
- WEEDLESS 3-BLADE PROPELLER
- STAINLESS STEEL PROPELLER SHAFT
- COMPATIBLE WITH OPTIONAL GEN 3 FOOT CONTROLLER

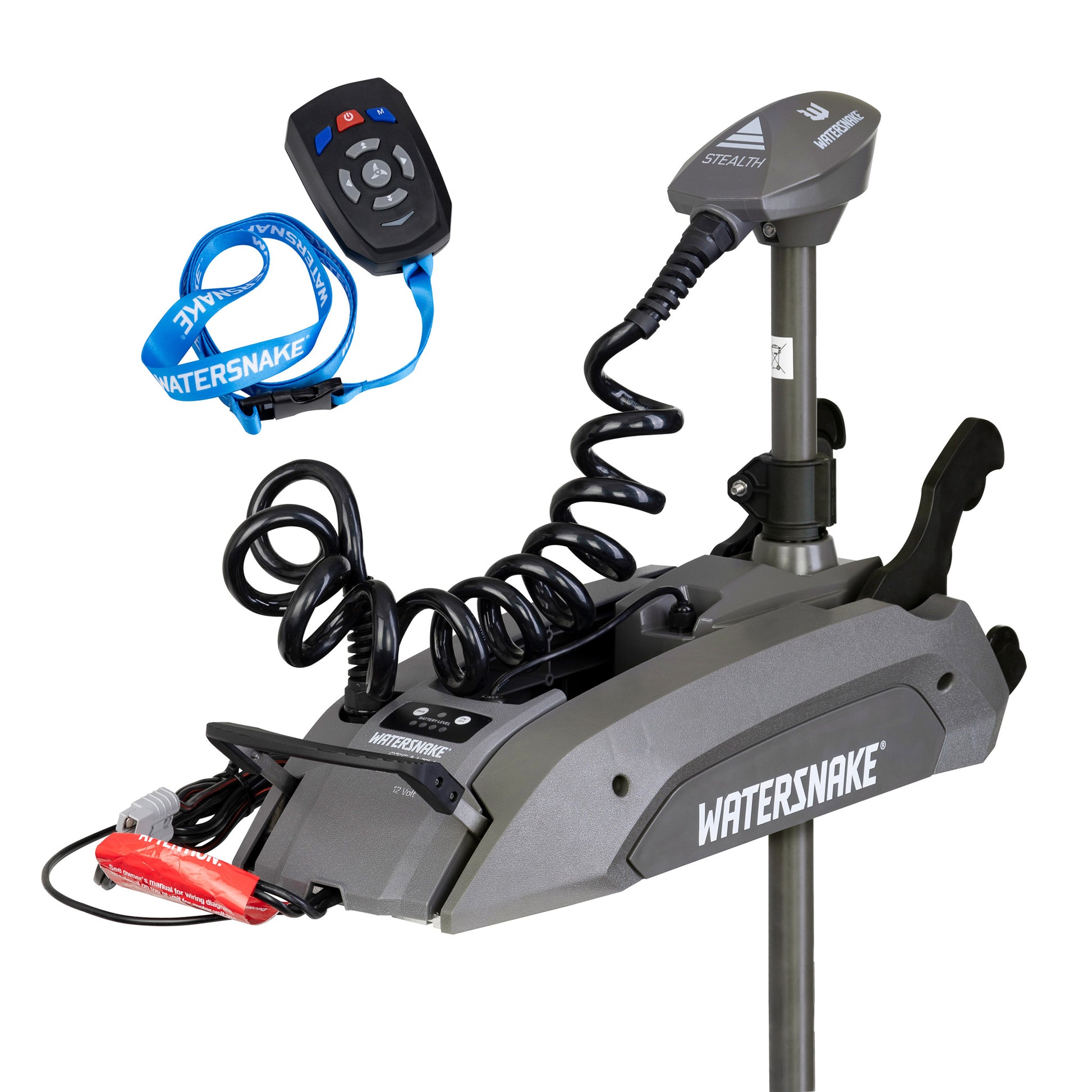

The Watersnake Stealth Bow Mount Electric Motor packs all of the essential features of a electric motor into an energy-smart design that requires only one 12 volt battery for power. Equipped with either 54lbs or 65lbs of thrust, the Stealth packs plenty of power for most trailer boats. Under typical usage conditions and with a suitable battery, the Stealth motor provides hours of on-water operation.

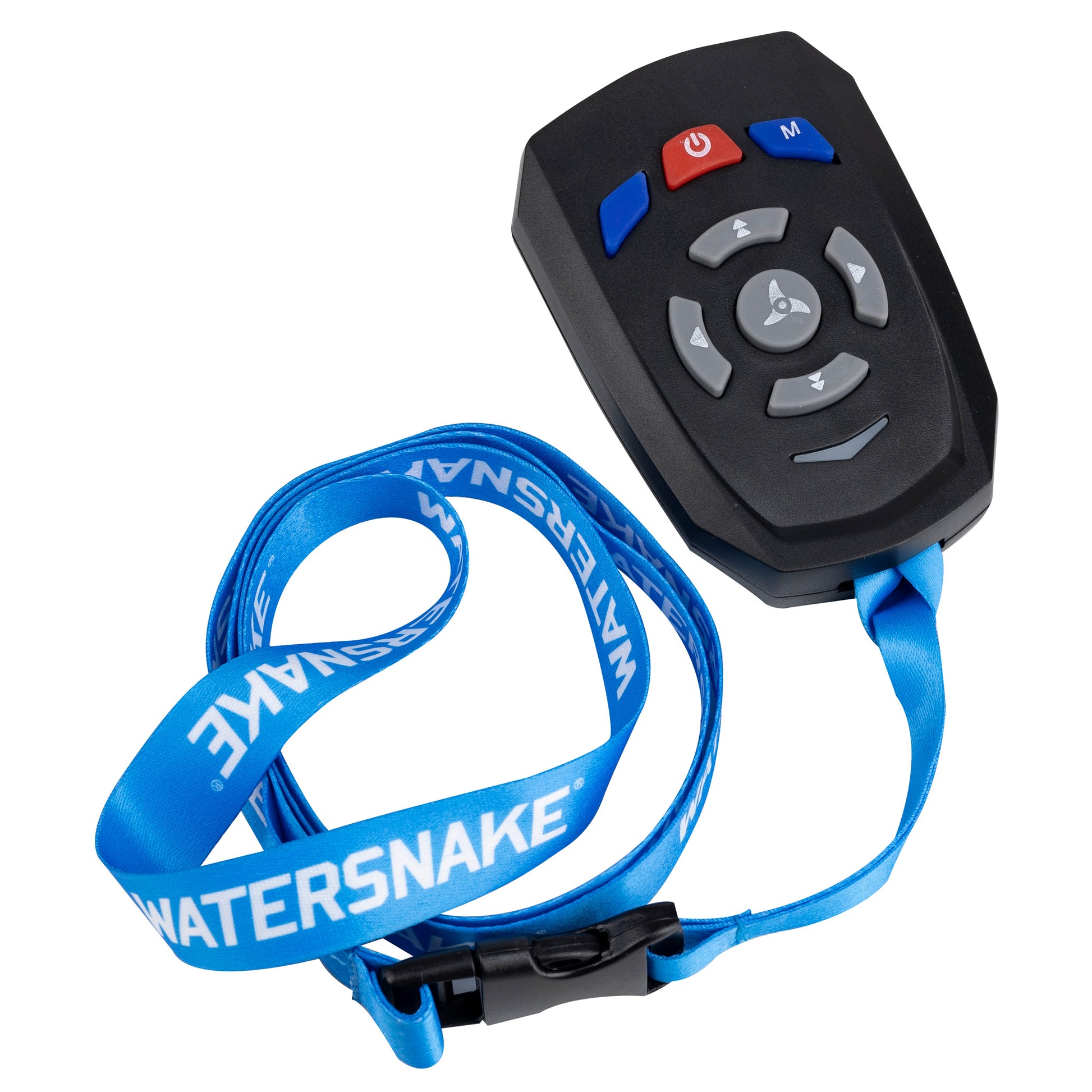

The Stealth motor includes a handheld remote fob which enables wireless control from anywhere on your boat. It also comes with built-in voltage protection for safety and an Anderson plug system for fast and simple battery connection.

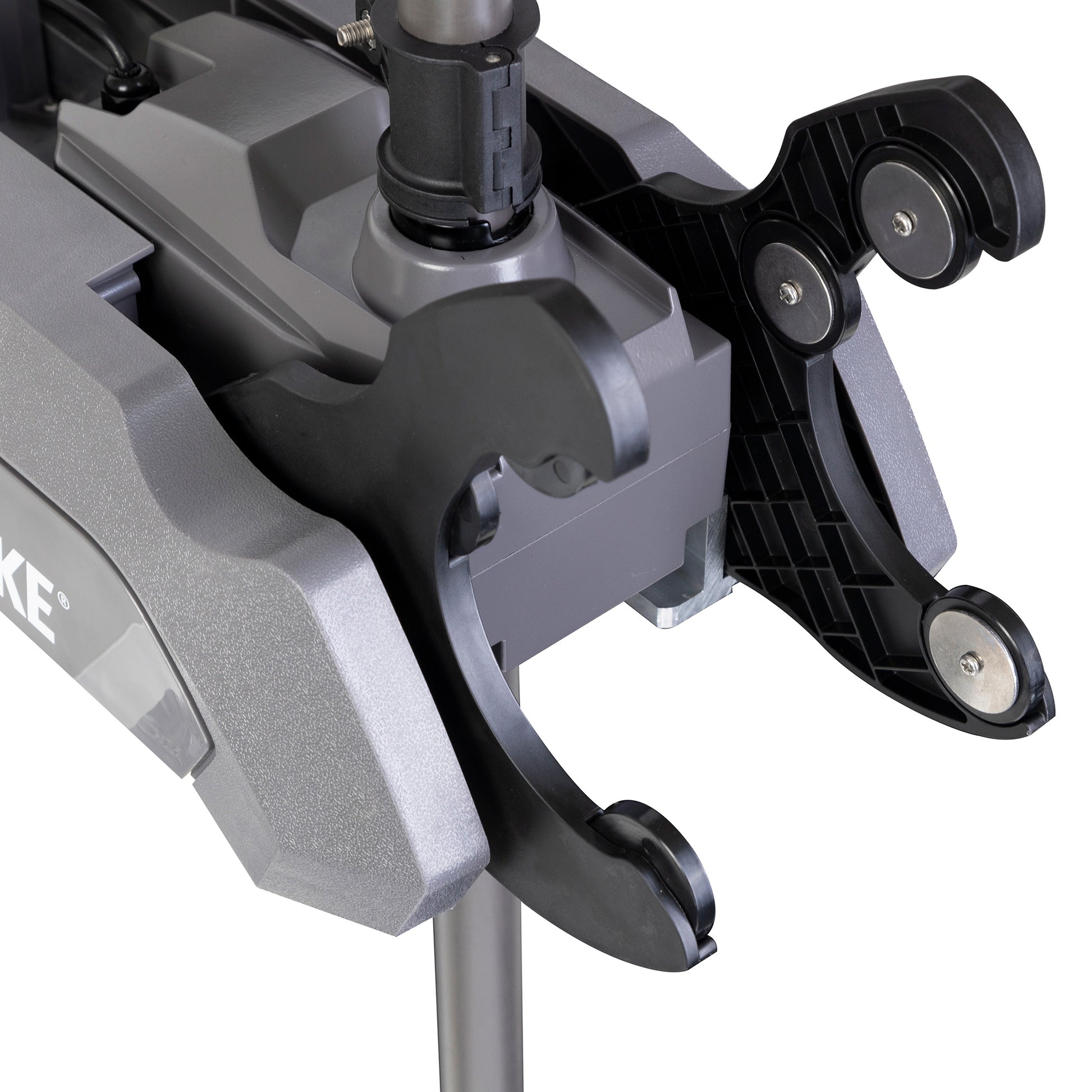

NEW AND IMPROVED BRACKET: Easier and smoother to deploy and stow. It includes large cradle hooks to hold the motor firmly in place while stowed.
After-Sales Support and Spare Parts
After-Sales Support and Spare Parts
visit the Watersnake Stealth Bow Mount Motors Support Page ❯
Watersnake Motor Size Selection Guides
Watersnake Motor Size Selection Guides
Specifications
Specifications
❮❮ SWIPE TO SCROLL ON MOBILE
| MODEL | Stealth 54/48 | Stealth 65/54 |
|---|---|---|
| CODE | 55319 | 55318 |
| THRUST | 54lb | 65lb |
| VOLTS | 12V | 12V |
| SHAFT | 48" (122cm) Composite | 54" (137cm) Composite |
| MOUNTING TYPE | Bow mount bracket | Bow mount bracket |
| STEERING CONTROL | Wireless handheld remote | Wireless handheld remote |
| SPEEDS | Digital variable | Digital variable |
| AMP DRAW | 0-50A | 0-43A |
| MAX POWER OUTPUT | 290W | 350W |
| MAX PROP RPM | 1700rpm | 1650rpm |
| MOTOR WEIGHT | 15.6kg | 16.1kg |
| VOLTAGE PROTECTION | Protected up to 14.5V. No circuit breaker or fuse required. | Protected up to 14.5V. No circuit breaker or fuse required. |
| SHAFT DIA. | 1.2 Inches (30mm) | 1.2 Inches (30mm) |
| SHAFT WALL THICKNESS | 4.25mm | 4.25mm |
| PROP | 3-Blade (94mm pitch) | 3-Blade reinforced nylon (94mm pitch) |
| GPS CAPABILITY? | No | No |
| FOOT CONTROL COMPATIBILITY? | Yes | Yes |
| WIRE GAUGE | 10AWG | 10AWG |
| REQUIRED BATTERY | 12V Deep Cycle or 12V LiFePO4 Lithium up to 14.5V in use | 12V Deep Cycle or 12V LiFePO4 Lithium up to 14.5V in use |
| SUGGESTED BATTERY CAPACITY | 100Ah or larger | 100Ah or larger |
| SUGGESTED LOADED BOAT WEIGHT | Less than 650kg | Less than 800kg |
| RRP | $ 1,279.00 | $ 1,549.00 |
