Watersnake Stealth GPS Bow Mount Trolling Motors
SKU:55326
FULL NAVIGATION CONTROL. INTELLIGENT ROUTING. SALTWATER READY.
The Watersnake Stealth GPS series delivers fully integrated navigation features for anglers who want to fish smarter and cover more water with less effort. Built on the same rugged, saltwater-ready platform as the Stealth X, the Stealth GPS adds intelligent modes that take total control of your speed, heading, and route. Whether you’re tracking a shoreline, retracing a drift, or holding tight on a mark, the Stealth GPS has you covered.
HARDWARE UPGRADES THAT MAKE A DIFFERENCE

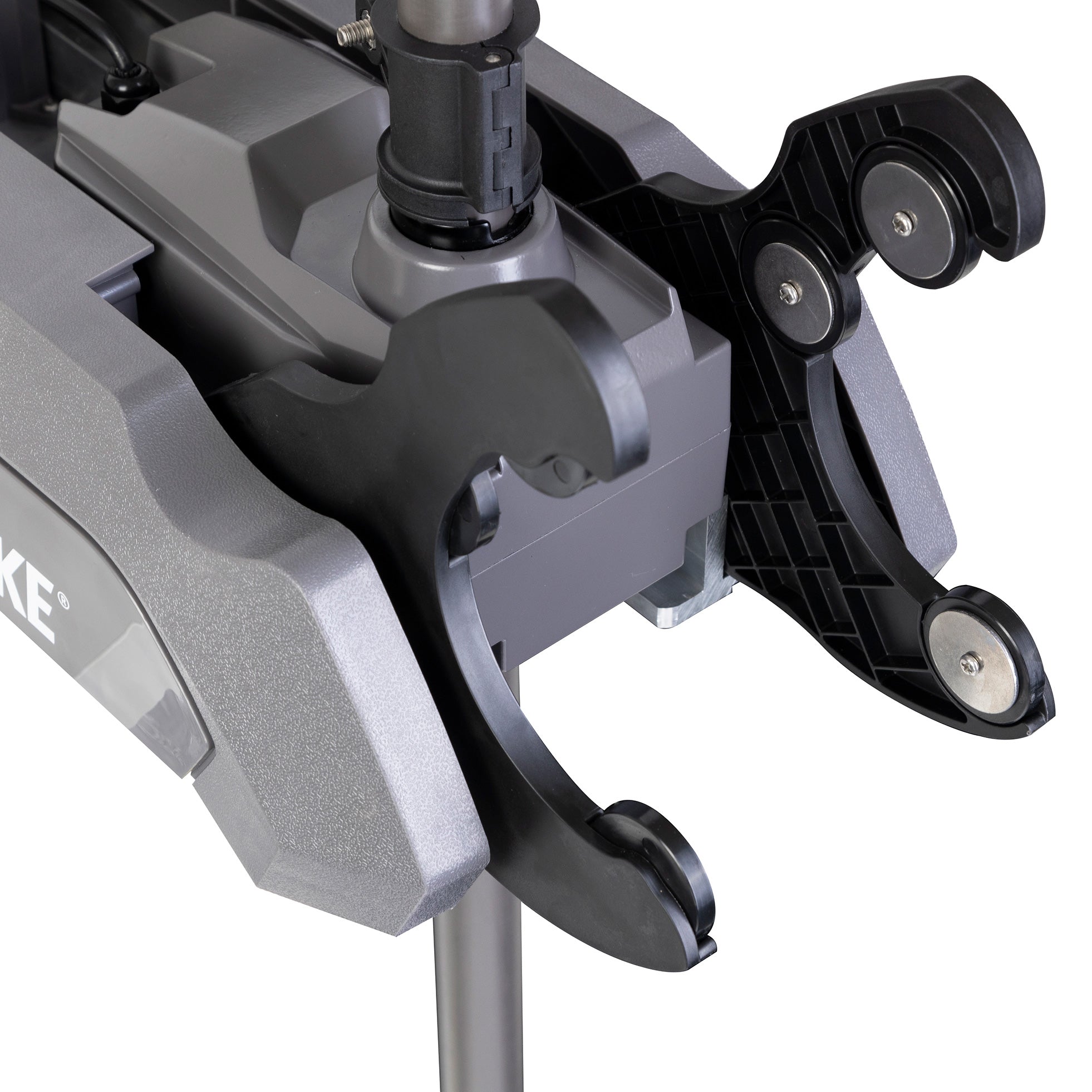

Upgraded Mounting Bracket
A completely redesigned bracket delivers much smoother, easier deployment and stowing, reducing physical effort and improving usability for anglers of all experience levels.
Stronger & Faster Turning Motor
Reinforced gearing and a more robust drive system provide quicker, more authoritative steering, helping you reposition or hold course with greater precision.
FEATURES:

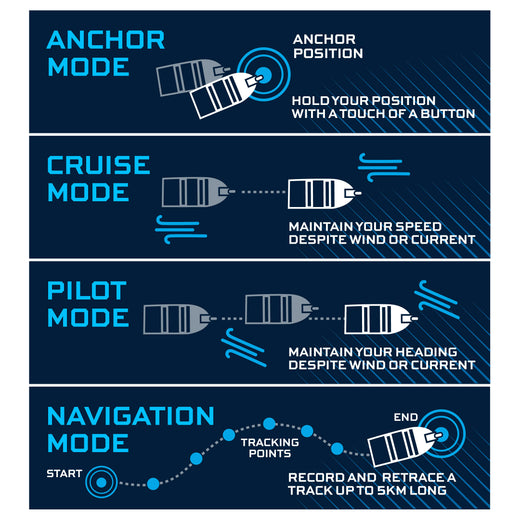

Anchor Mode Hold Function
Hold your boat in place at the press of a button. Anchor Mode uses satellite-based location tracking to automatically maintain your position without physical anchoring.
Cruise Mode
Maintain a consistent ground speed, even when faced with wind or current—ideal for trolling or covering long areas with precision.
Track Recording
Record your fishing route and retrace it automatically later. Perfect for returning to productive drift lines or trolling runs.
Navigate Mode
Automatically travel to the start or end of a saved route, then follow the recorded track hands-free.
Optional Navigation Sensor
Upgrade your motor’s responsiveness and heading accuracy with the optional plug-in navigation sensor (sold separately).
Ready for Saltwater
Composite shaft, encapsulated driver module, and sacrificial zinc anode provide durable performance in harsh marine conditions.

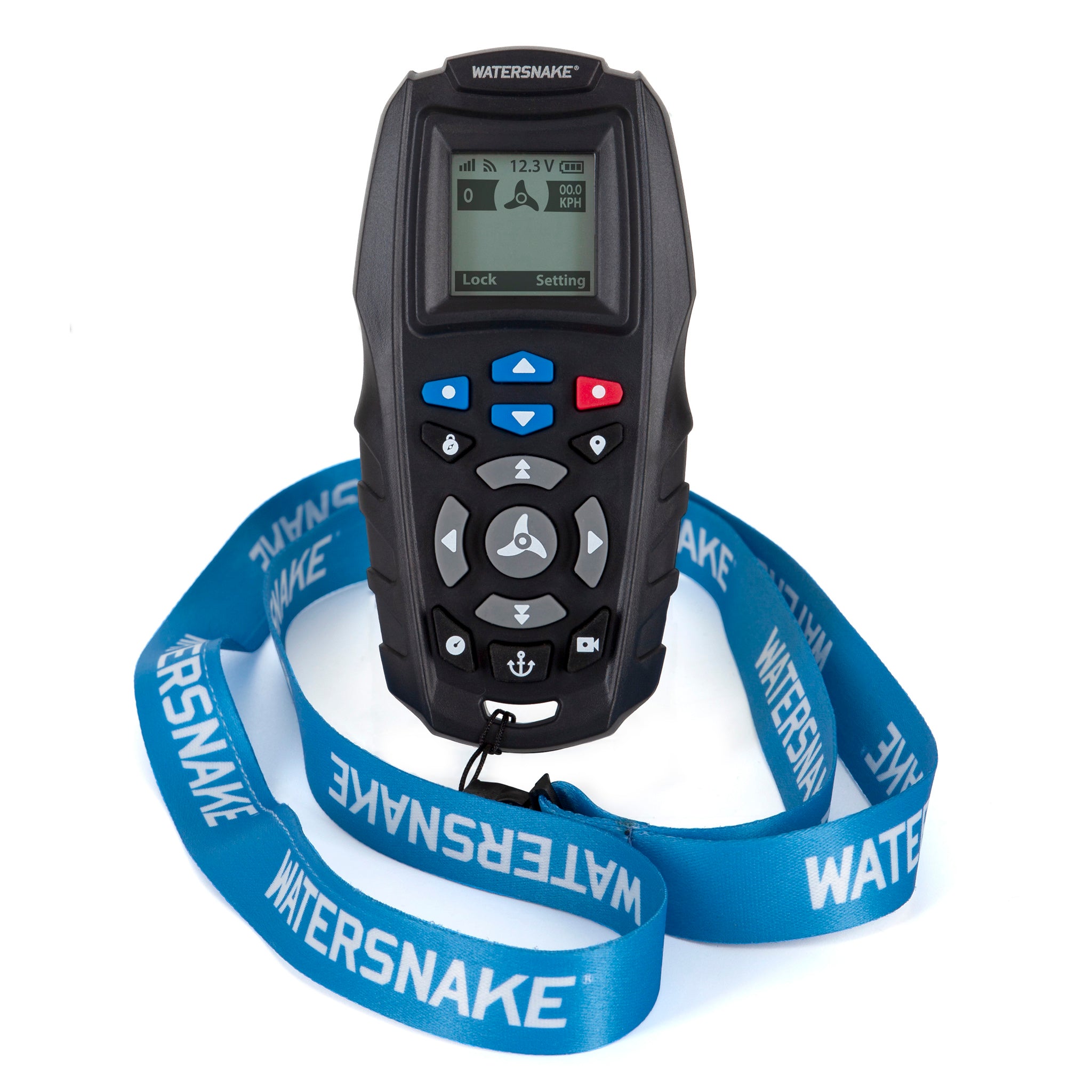

Wireless Handheld Remote
Control speed and steering from anywhere on the boat with the included wireless remote.
LiFePO₄ Battery Compatible
Use lightweight lithium power with support for 12V models up to 14.5V in use.
Upgraded Mounting Bracket
Redesigned for smooth, efficient deployment and stowing.
Stronger and Faster Turning Motor
Improved drive system delivers quicker steering response for more agile positioning.
Anderson Plug Connections
Quick and easy setup with marine-grade plug-and-play connectors.
Digital Speed Control
Precise control in both forward and reverse, with smooth, efficient power delivery.
Built-in Voltage Protection
Internal protection circuitry allows safe operation up to 14.5V (12V) —no external breaker required.
Weedless 3-Blade Propeller
Move confidently through weed beds with minimal drag or resistance.
Stainless Steel Propeller Shaft
Corrosion-resistant strength for extended use in saltwater and freshwater environments.
Foot Controller Compatible
Designed to work with the optional Gen 3 Foot Controller for hands-free control (sold separately).
After-Sales Support and Spare Parts
After-Sales Support and Spare Parts
visit the Watersnake Stealth GPS Bow Mount Trolling Motors Support Page ❯
Watersnake Motor Size Selection Guides
Watersnake Motor Size Selection Guides
Specifications
Specifications
❮❮ SWIPE TO SCROLL ON MOBILE
| MODEL | Stealth GPS 54/48 | Stealth GPS 65/54 | Stealth GPS 65/60 | Stealth GPS 65/66 |
|---|---|---|---|---|
| CODE | 55326 | 55327 | 55328 | 55329 |
| THRUST | 54lb | 65lb | 65lb | 65lb |
| VOLTS | 12V | 12V | 12V | 12V |
| SHAFT | 48" (121cm) Composite | 54" (137cm) Composite | 60" (152cm) Composite | 66" (167cm) Composite |
| MOUNTING TYPE | Bow mount bracket | Bow mount bracket | Bow mount bracket | Bow mount bracket |
| STEERING CONTROL | Wireless handheld remote and full GPS | Wireless handheld remote and full GPS | Wireless handheld remote and full GPS | Wireless handheld remote and full GPS |
| SPEEDS | Efficient digital variable | Efficient digital variable | Efficient digital variable | Efficient digital variable |
| MAX AMP DRAW | 50A | 43A | 43A | 43A |
| MAX POWER OUTPUT | 290W | 350W | 350W | 350W |
| RATED PROP RPM | 1350rpm | 1400rpm | 1400rpm | 1400rpm |
| MOTOR WEIGHT | 17.5kg | 18.5kg | 19kg | 19.5kg |
| VOLTAGE PROTECTION | Protected up to 14.5V. No circuit breaker or fuse required. | Protected up to 14.5V. No circuit breaker or fuse required. | Protected up to 14.5V. No circuit breaker or fuse required. | Protected up to 14.5V. No circuit breaker or fuse required. |
| SHAFT DIA. | 1.2 Inches (30mm) | 1.2 Inches (30mm) | 1.2 Inches (30mm) | 1.2 Inches (30mm) |
| PROPELLER | 3-Blade (94mm pitch) | Reinforced Nylon 3-Blade (94mm pitch) | Reinforced Nylon 3-Blade (94mm pitch) | Reinforced Nylon 3-Blade (94mm pitch) |
| GPS CAPABILITY? | Full GPS | Full GPS | Full GPS | Full GPS |
| FOOT CONTROL COMPATIBILITY? | Yes, optional accessory | Yes, optional accessory | Yes, optional accessory | Yes, optional accessory |
| NAV SENSOR COMPATIBILITY? | Yes, optional accessory | Yes, optional accessory | Yes, optional accessory | Yes, optional accessory |
| REQUIRED BATTERY | 12V Deep Cycle or 12V LiFePO4 Lithium up to 14.5V in use | 12V Deep Cycle or 12V LiFePO4 Lithium up to 14.5V in use | 12V Deep Cycle or 12V LiFePO4 Lithium up to 14.5V in use | 12V Deep Cycle or 12V LiFePO4 Lithium up to 14.5V in use |
| SUGGESTED BATTERY CAPACITY | 100Ah or larger | 100Ah or larger | 100Ah or larger | 100Ah or larger |
| RRP | $ 2,399.00 | $ 2,799.00 | $ 2,799.00 | $ 2,799.00 |
